High frequency B-H Analyzer
This device measures the alternating magnetic properties of soft magnetic materials.BH1050 magnetic core loss tester is a specialized instrument for measuring magnetic core loss, equipped with a high-power high-frequency sine wave power supply, which can provide maximum 1600Vp-p@100Ap-p The current drives high-power magnetic core inductors.
The phase measurement repeatability of BH1050 is 0.02deg at 500kHz, and it still maintains good accuracy for measuring low loss magnetic cores such as iron silicon aluminum, iron nickel, iron nickel molybdenum, etc. under high-frequency testing conditions.
BH1050 adopts the Cross Power mode (| EC62044-3), using high-precision current measurement resistors to reduce phase measurement errors. The measurement circuit has complete gain and phase compensation characteristics.
INGENUWORK loss tester can be customized and developed according to your needs. For more parameter indicators and application solutions, please contact customer service for consultation.

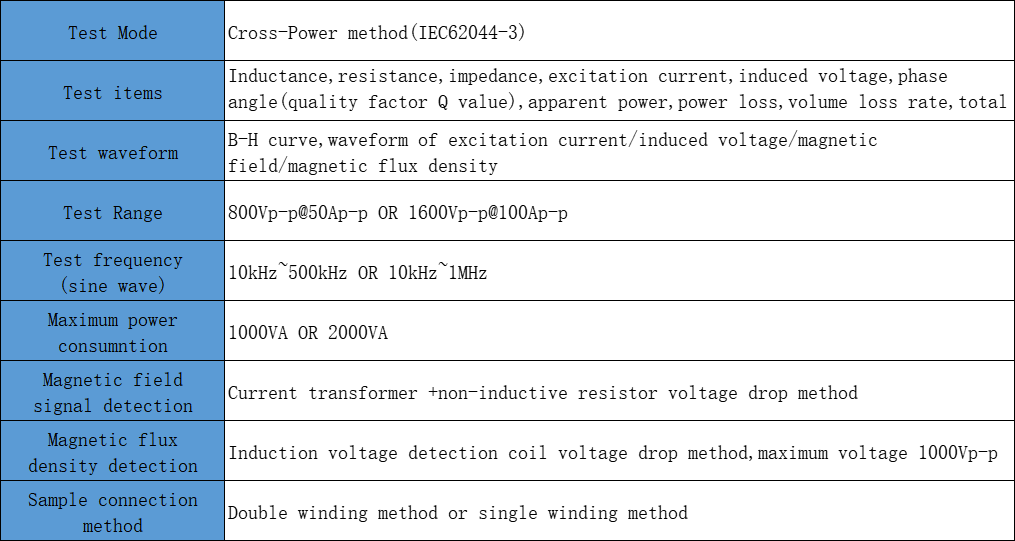

Technical indicators

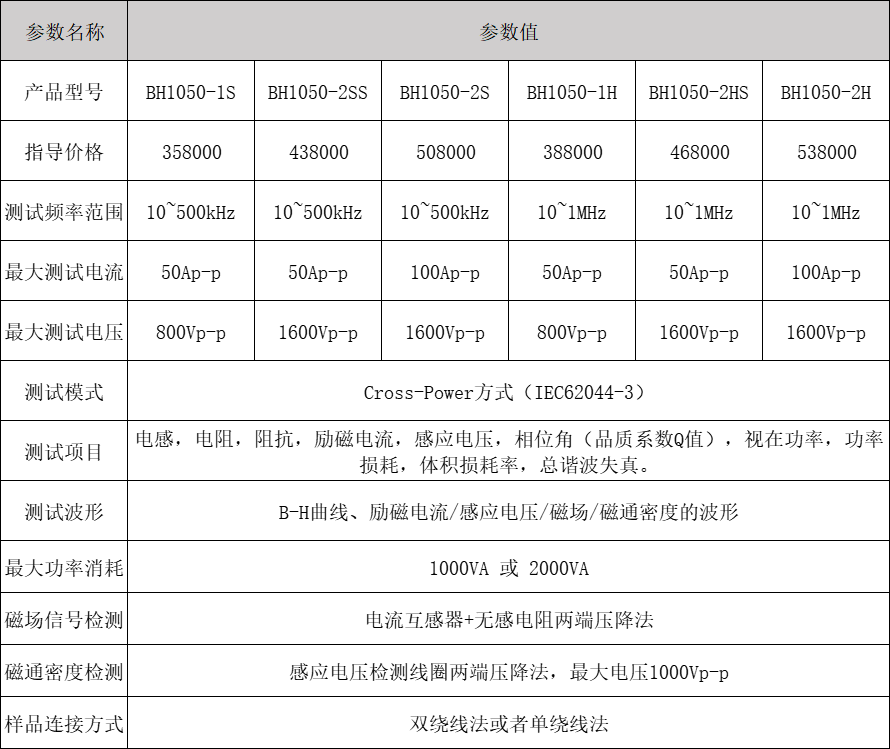

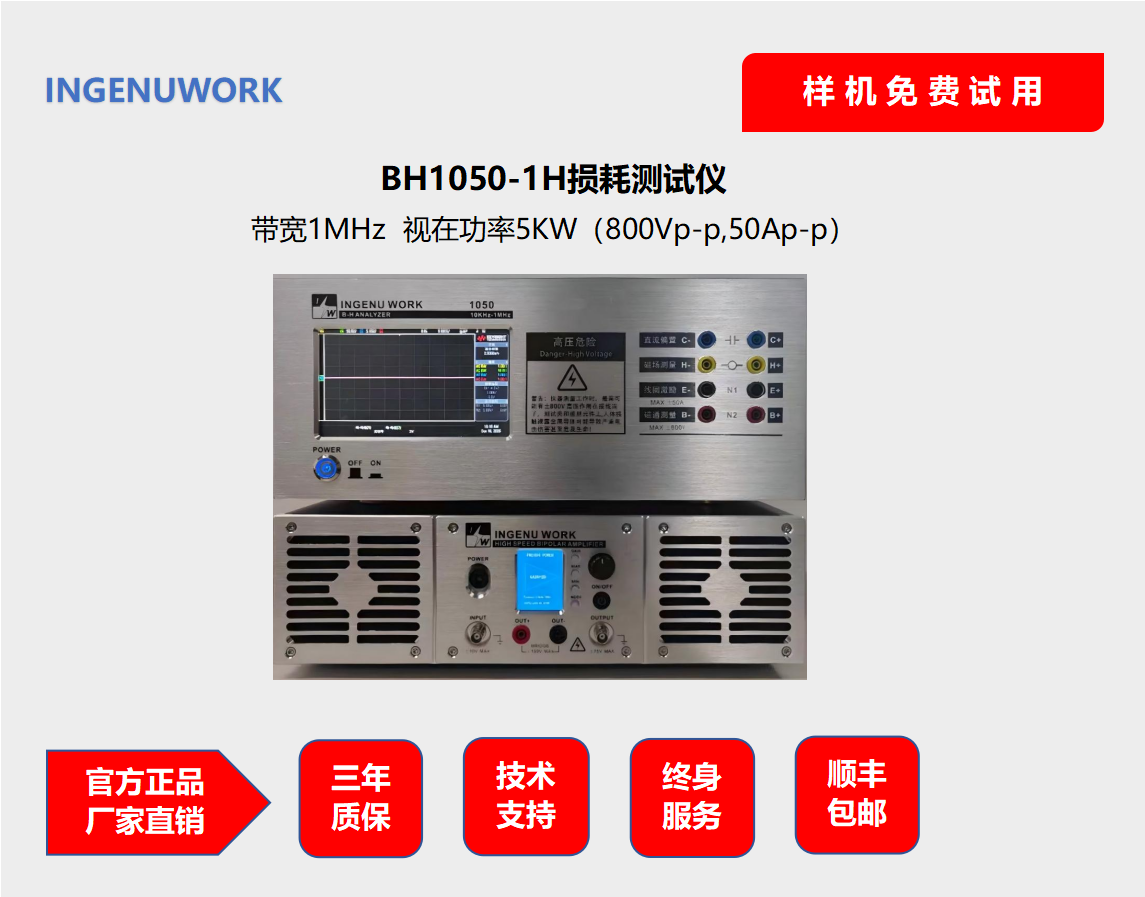

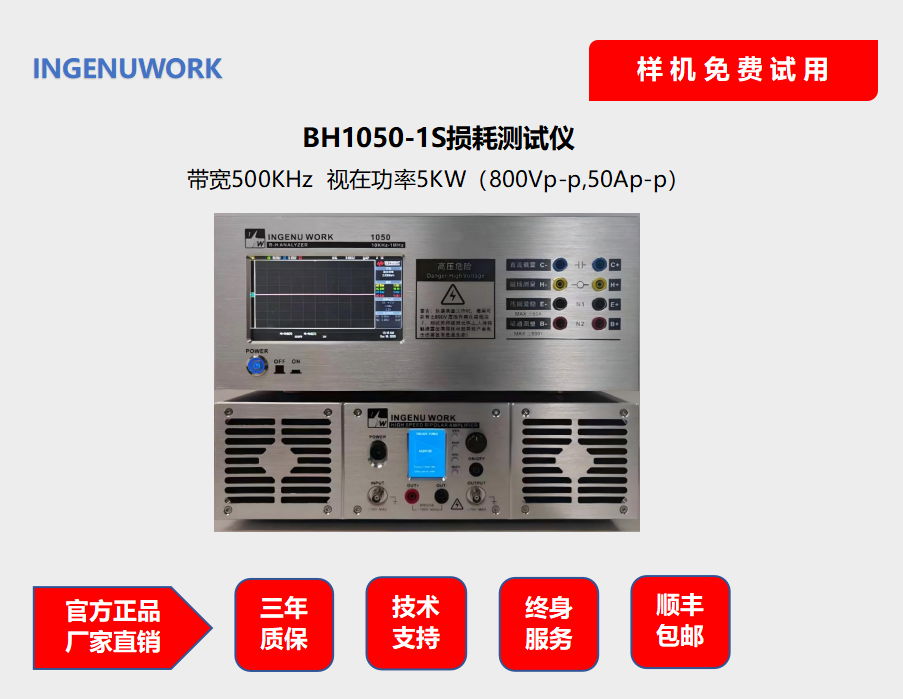

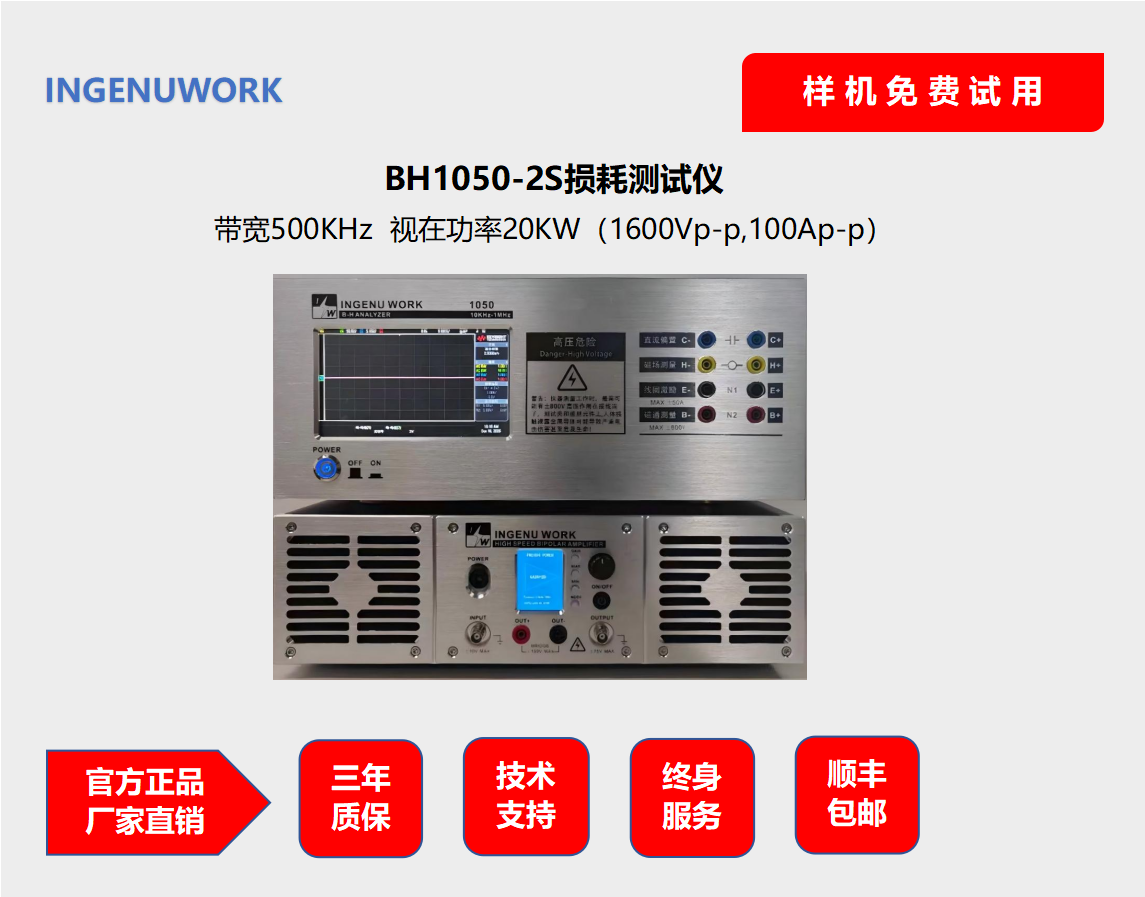

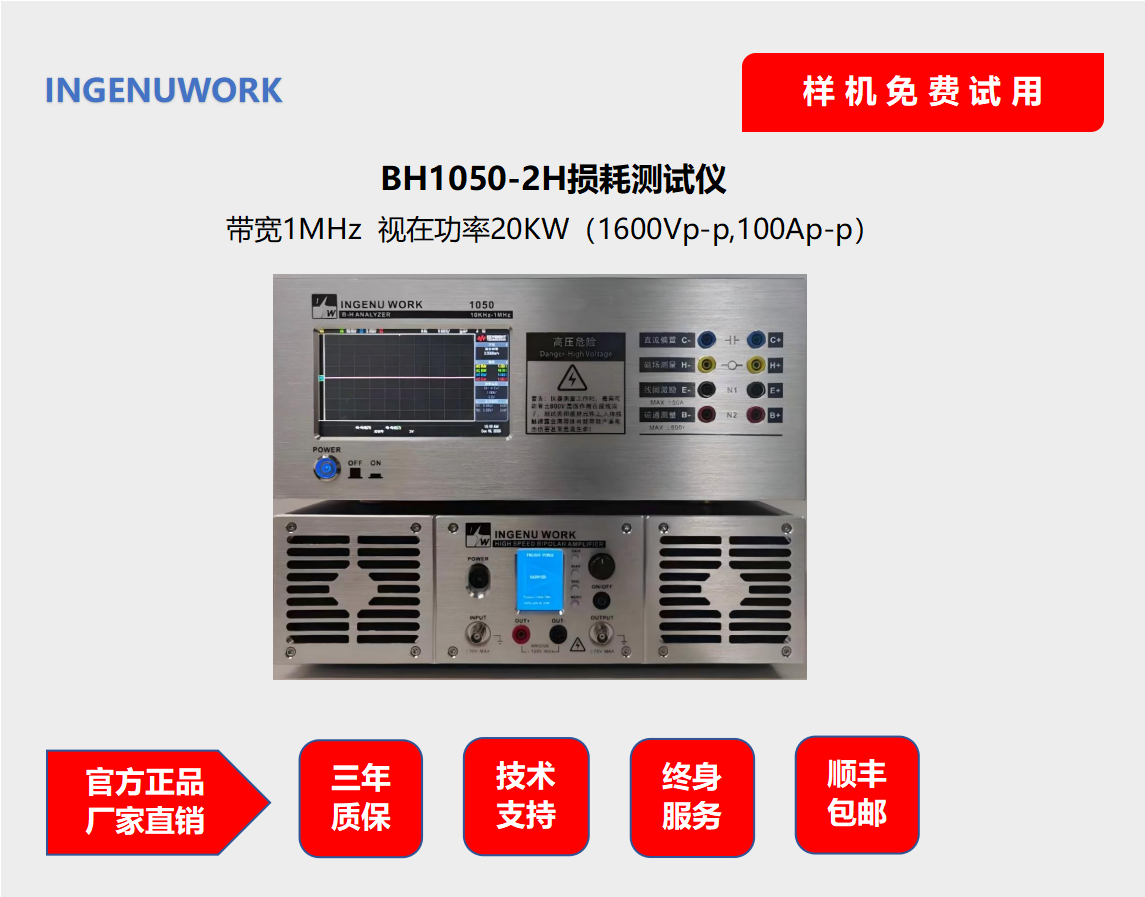

Selection and Configuration
Testing principle
The BH1050 adopts the Cross Power mode (IEC62044-3), and the BH1050 host is equipped with a high-power, low distortion high-frequency amplifier power supply. The amplifier power supply drives the tested inductance to reach the required frequency and magnetic flux density for testing. Then, the current signal flowing through the inductor and the voltage signal at both ends of the inductor are obtained through a high-speed data collector. After accurately measuring the amplitude and phase difference of the signal, the loss power can be calculated.
For more information, please refer to the following product manual. INGENUWORK can customize and develop according to your needs. For more parameter indicators and application solutions, please contact customer service for consultation.
